DSP-DAC NC252MP
MASTER AND SLAVE THREE WAY STEREO (SIX CHANNEL) DSP CROSSOVER WITH FOUR AMPLIFIER OUTPUTS PLUS TWO PRE OUTPUTS
The first model introduced is the DSP-DAC NC252MP Master and Slave ‘bi-amp mono blocks’ with line pre out channels (e.g. to integrate subwoofers or add amplifiers for a stereo three way active crossover).
This only requires a pair of conventional speakers and a digital or analogue source for a complete and superb audio set up.
Featuring three dsp channels and two NCore 250W (rms into 4 ohms) power amplifier channels in each box means you can instantly bi-amp your existing speakers or set up a 2.1 active crossover system.
Two Independent (filter and delay adjustable) rca output channels means one or two subwoofers can be properly integrated and time aligned or add any two channel power amplifier to make a fully active three way speaker system.
The two box configuration allows placement closer to speakers with shorter speaker cable runs if convenient.
Extra dsp slave channels can be digitally daisy chained to integrate subwoofers and/or add more drivers.
OVERVIEW
Our new range of DSP-DAC amplifiers offer a truly excellent and versatile solution at an affordable price.
Based around the excellent Hypex DSP with HFD (Hypex Filter Design) software and NCore power amplifier modules means they are a superb ‘no compromise’ solution offering a versatile and expandable system, from simple two channel stereo driving traditional HiFi speakers with passive internal crossovers, all the way up to fully customisable multiple drive unit active speaker/subwoofer setups with optimisable response and room acoustic compensation.
They perform the duties of DAC, preamplifier and multiple power amplifiers of the highest audio quality with simplicity of operation and cost that belies a powerful technical prowess.
Quite simply add speakers and analogue/digital sources for a complete system which includes remote control for volume, input selection and three presets for different EQ preferences.
The DSP engine allows parametric equalisation, room tuning compensation filters, active crossover filters and up to 19.2ms of delay per channel with microphone FFT measurement and graphical interface via a laptop/pc.

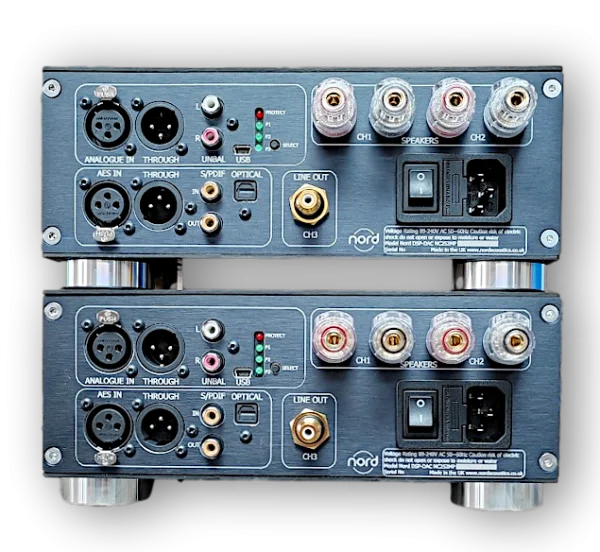

Inputs are
Analogue XLR balanced
Analogue RCA unbalanced
Digital AES/EBU balanced
Digital S/PDIF unbalanced
Optical
(All inputs are selectable without any change in set up)
Remote control and a big, clear display makes operation both simple and convenient.
Due to the modular nature of the DSP, a system can start simple and grow from there, if desired.
Up to three slaves can be used with a master to give a maximum total of 12 channels consisting a combination of left, right or left + right (in groups of three i.e. per box) with individual filter settings and delay.
No longer are you tied to a (compromised) performance with ‘fixed response’ which may not suit your preference or room acoustics.
This is not some simplified or compromised version, these are the actual building blocks for a truly high end system..
