1ET400A
Nord Three 1ET400A 3CH Power Amplifier
£1,549.00SPECIFICATION
(Per Channel)
• Standard 3CH Case
• 3 x Purifi 1ET400A Module
• 3 x Hypex SMPS1200A400 Power Supply
• 3 x Nord (cut down) REV C Buffer Board with OPA1612 Daul Op Amp
• Distortion: THD+N – – 0.001 % 20Hz
• Frequency Response: 0 – 50k Hz THD+N 100W – – 0.00017 % 20-20kHzHz
• Low Distortion: THD+N 100W – – 0.00017 % 20-20kHzHz
• SNR 131dB
• High Input Impedance 51K
• 26.8 dB Gain 2.52V Sensitivity
• Ultra High Damping Factor
• High 25A Current Output Capable of driving 2ohm for the
Most Demanding of Speakers.
• Idle Loses output Stage ~1.7W
• Efficiency >94%
450W 2ohm
425W 4ohm
227W 8ohm
• Frequency Response: 20 – 20kHz +/-.01dB
• Case mm W 450 D 405H 102
• Weight 12.5Kg
Nord Three 1ET400A MKII Dual Mono Stereo Power Amplifier
£1,649.00SPECIFICATION
(Per Channel)
• Standard Stereo Case (Optional SE Case)
• 2 x Purifi 1ET400A Module
• 2x Hypex SMPS1200A400 Power Supply
• 2 x Nord REV D Input Buffer Board Choice of Op Amps.
• Distortion: THD+N 100W – – 0.00017 % 20-20kHzHz
• Frequency Response: 0 – 50k Hz +0/-3dB
• Low Distortion: THD+N 100W – – 0.00017 % 20-20kHzHz
• SNR 131dB
• High Input Impedance 51K
• 26.8 dB Gain 2.52V Sensitivity
• Ultra High Damping Factor
• High 25A Current Output Capable of driving 2ohm for the
Most Demanding of Speakers.
• Idle Loses output Stage ~1.7W
• Efficiency >94%
450W 2ohm
425W 4ohm
227W 8ohm
• Frequency Response: 20 – 20kHz +/-.01dB
• Case mm W450 D 405 H 102 SE Case W 430 D 330 H 100
• Weight 9Kg
Nord Three 1ET400A 4CH Power Amplifier
£1,849.00Nord Three 1ET400A 4CH MKII 4 Channel Power Amplifier
£2,549.00SPECIFICATION
(Per Channel)
• Standard 4CH Case
• 4 x Purifi 1ET400A Module
• 2 x Hypex SMPS1200A400 Power Supply
• 4 x Nord REV D Input Buffer Board Choice of Op Amps.
• Distortion: THD+N 100W – – 0.00017 % 20-20kHzHz
• Frequency Response: 0 – 50k Hz +0/-3dB
• Low Distortion: THD+N 100W – – 0.00017 % 20-20kHzHz
• SNR 131dB
• High Input Impedance 51K
• 26.8 dB Gain 2.52V Sensitivity
• Ultra High Damping Factor
• High 25A Current Output Capable of driving 2ohm for the
Most Demanding of Speakers.
• Idle Loses output Stage ~1.7W
• Efficiency >94%
450W 2ohm
425W 4ohm
227W 8ohm
• Frequency Response: 20 – 20kHz +/-.01dB
• Case mm W 450 D 405 H 102
• Weight 14Kg

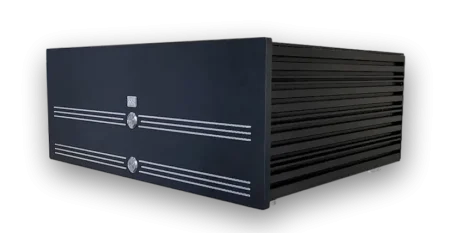

Nord Three 1ET400A 8CH 5-8 Channel Power Amplifier
£2,995.00SPECIFICATION
(Per Channel)
• Standard 3CH Case
• 3 x Purifi 1ET400A Module
• 3 x Hypex SMPS1200A400 Power Supply
• 3 x Nord (cut down) REV C Buffer Board with OPA1612 Daul Op Amp
• Distortion: THD+N – – 0.001 % 20Hz
• Frequency Response: 0 – 50k Hz THD+N 100W – – 0.00017 % 20-20kHzHz
• Low Distortion: THD+N 100W – – 0.00017 % 20-20kHzHz
• SNR 131dB
• High Input Impedance 51K
• 26.8 dB Gain 2.52V Sensitivity
• Ultra High Damping Factor
• High 25A Current Output Capable of driving 2ohm for the
Most Demanding of Speakers.
• Idle Loses output Stage ~1.7W
• Efficiency >94%
450W 2ohm
425W 4ohm
227W 8ohm
• Frequency Response: 20 – 20kHz +/-.01dB
• Case mm W 450 D 405H 102
• Weight 12.5Kg
